Specifications;

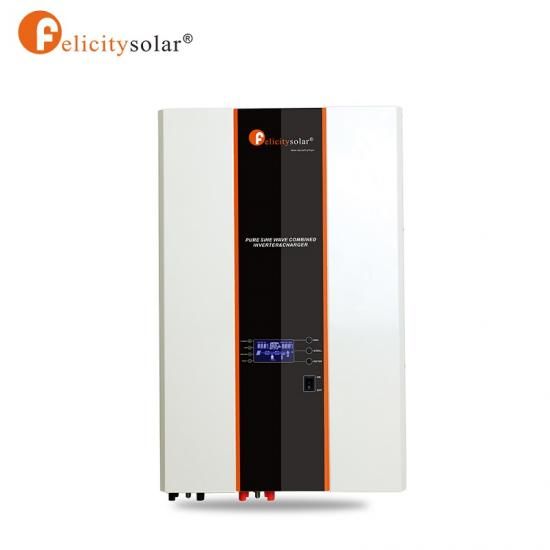

• Model: IVGM10048
• Rated Power: 10KVA/10KW
• Battery Voltage Range: 40~60V
• Max. charging and discharging current: 100
• Max. charging and discharging power: 5KW
• Max. recommend PV power: 13000KW
• Max. PV Voltage: 900V
• PV Voltage Working Range: 160V～900V
• MPPT Voltage Range: 200V～850V
• Max. input current: 15A/15A
• Max. short circuit current: 18A/18A
• Number of MPP trackers/strings per MPP: 2
• AC Norminal input voltage: 230V/400V
• Input voltage range: 184V~264.5V
• Max. input current: 30A
• Max. output power: 10KW
• AC output rated current: 14.5A per phase
• Protection degree: IP65.
• Grid Regulation: VDE-AR-N 4105; G99/1; EN50549-1; CEI 0-21; AS 4777.2; NRS 097-2-1;
• Safety Regulation: IEC 62109-1/2, IEC 62040-1
• EMC: EN61000-6-1, EN61000-6-3
• Net Weight: 34.8KG
• Gross Weight: 40.0KG
• Product Size: 528*493*229mm
• Package Size: 632*585*315mm
• Warranty: 5 Years
